French yacht builder JFA Yachts presents 38m eco-friendly explorer yacht concept called Arcana.

Yacht designer Horacio Bozzo developed this explorer concept (exterior design) with Axis Group Yacht Design (naval architecture). Furthermore, Arcana has a range of 4,000 nautical miles at 10 knots and is powered by a diesel-electric propulsion system.

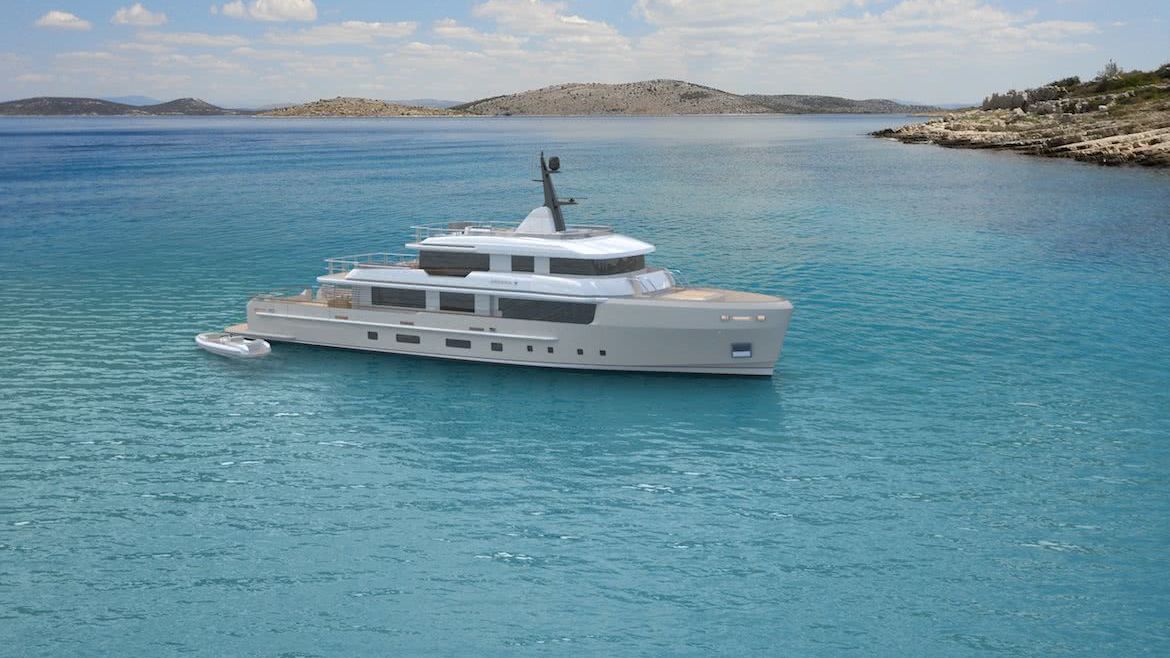

Explorer Yacht Arcana JFA

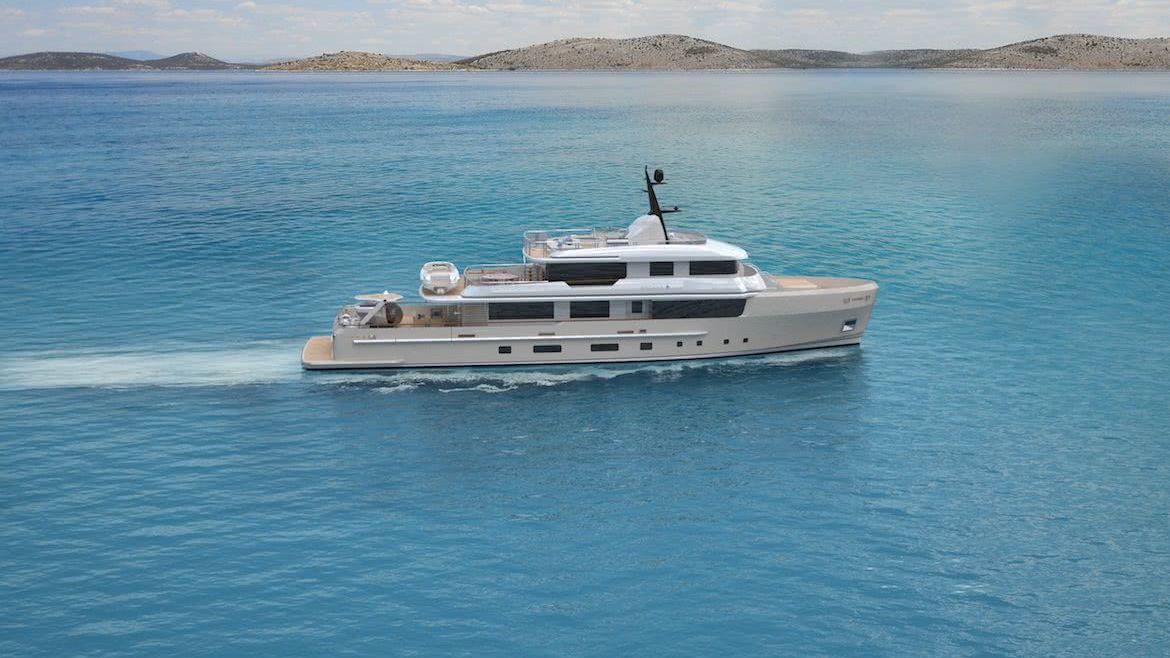

Arcana Explorer Yacht JFA
Explorer Yacht Design JFA Arcana

The project partners focused on an environmentally-friendly and fuel-efficiency yacht. In Addition, comfort is also a key feature. Less noise, vibrations, stability and dynamic position mode. At the stern is space for a 3-passenger submarine like the U-Boat Worx Submarine 3.

Main Specifications

Length over all:38.00 m
Length waterline:36.65m
Beam:8.50m
Draft:2.60 m
Naval Architecture:Axis Group Design
Exterior Design:Horacio Bozzo
Concept:Hansen Marine Exploration Pte Ltd
Gross Tonnage360 GT
Main Engines:2 x 360 kW with 2 x Schottel Combi Drive SCD 200 Twin
Main Generators:2 Caterpillar 450 ekW variable speed
Cruising Speed:13 knots
Range:4,000 nm @ 10 knots
Construction:Steel (hull) and aluminum (superstructure)
Guests:10 - 12
Crew:7
